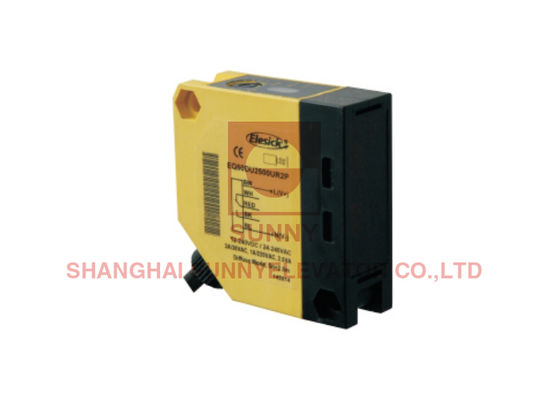

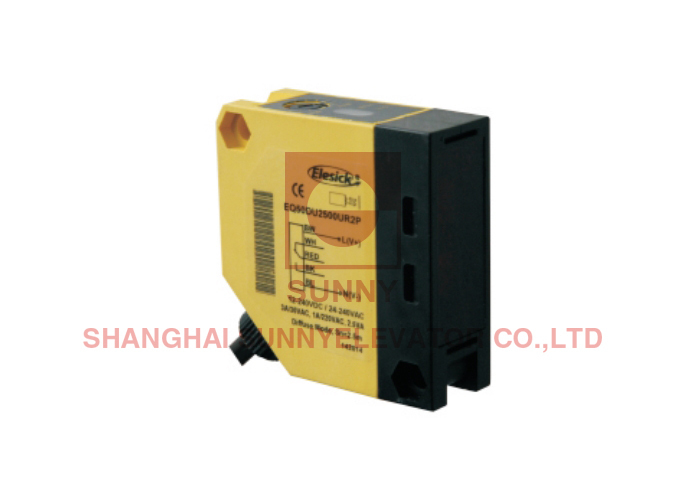

Escalator Entrance Detection Device Escalator Safety Entry Detector

Escalator Entrance Detection Device Escalator Safety Entry Detector

Büyük resim :  Escalator Entrance Detection Device Escalator Safety Entry Detector

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: SUNNY
Sertifika: CE,ISO9001
Model numarası: EQ50DD2500DK2P
Ödeme & teslimat koşulları:
Min sipariş miktarı: 10 adet
Fiyat: $7~10
Ambalaj bilgileri: Standart İhracat Paketi
Teslim süresi: 7 ~ 15 gün
Ödeme koşulları: L/C, T/T, Western Union
Yetenek temini: 1000 Adet/ Ay
Detaylı ürün tanımı
İsim: Yürüyen merdiven giriş algılama cihazı Uygulanabilir: Asansör ekipmanı
İşletme Türü: üretici Toplu taşıma: Deniz taşımacılığı
Ürün adı: Asansör parçaları Gerilim: 10...30VDC
Model: Yürüyen merdiven giriş algılama cihazı Ürün: Yürüyen merdiven giriş algılama cihazı
Çıktı: PNP veya NPN Sıcaklık Limitleri: -20 ~+70 ° ℃



Escalator Entrance Detection Device Escalator Safety Entry Detector



Feature Description

Manufactured with a dedicated IC, this product offers stable performance. Built-in output short-circuit protection, surge protection, and overload protection circuits are also available. Multi-function programmable outputs (NPN/PNP/NO/NC) or relay outputs are available. Fast response time, long life, and high reliability are key features. IP65 (IEC) protection rating is also available.



Model EQ50DD2500DK2P EQ50UD2500UR2P
Power supply 10...30VDC 12-24VDC/24-240VAC
Riple <10%
Sensitivity adjustment VR
Emission Infrared(880nm)
Output PNP or NPN Relay SPDT
Output Characteristics NO or NC 3A/30V AC, 1A
Max. Load Current ≤200mA <2.5VA
No Load Current 30mA or Less
Voltage Drop(Sensor On) <2.5V -
Response Time ≤1ms
Short Circuit Protection Yes -
Electric Protections Yes -
Temperature Limits -20 ~+70°℃
Storage temperature and humidity -40 ~ +80℃ 95% RH
Light Immunity >100,000Lux
Protection Degree En60529 IP65
EMC EN 12015, EN 12016
Certification CE
Connection Type PVC Cable





Escalator Entrance Detection Device Escalator Safety Entry Detector 0



Escalator Entrance Detection Device Escalator Safety Entry Detector 1



Escalator Entrance Detection Device Escalator Safety Entry Detector 2

Escalator Entrance Detection Device Escalator Safety Entry Detector 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
