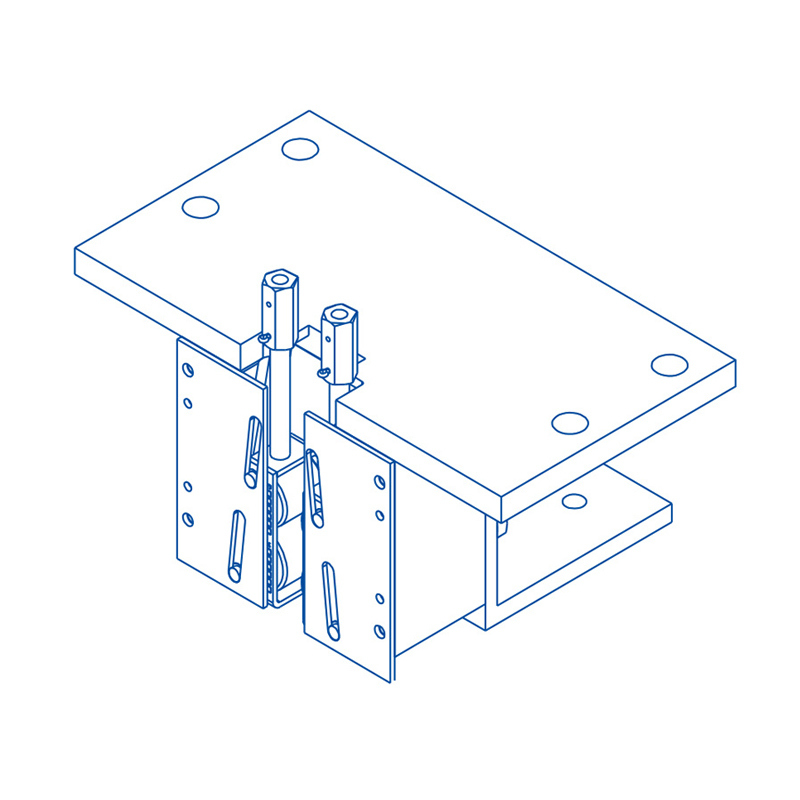

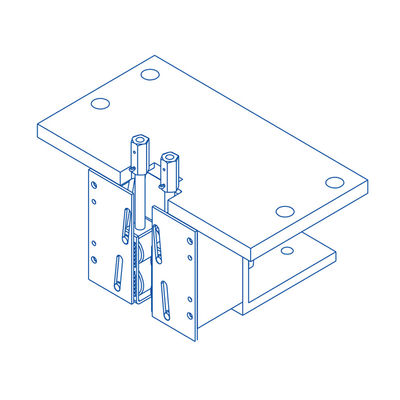

Elevator Safety Parts Elevator Instantaneous Safety Gear ≤7000Kg P+Q

Elevator Safety Parts Elevator Instantaneous Safety Gear ≤7000Kg P+Q

Büyük resim :  Elevator Safety Parts Elevator Instantaneous Safety Gear ≤7000Kg P+Q

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: SUNNY
Sertifika: CE,ISO9001
Model numarası: SN-SG-QS6
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 takım
Fiyat: $50
Ambalaj bilgileri: Ahşap Kutu
Teslim süresi: 7 ~ 15 gün
Ödeme koşulları: L/C, T/T, Western Union
Yetenek temini: 10000 Adet/Ay
Detaylı ürün tanımı
isim: Ani Güvenlik Donanımı Kılavuz rayların genişliği: 15,88/16 mm
P+Q: ≤7000Kg Nominal Hız: ≤0,63m/s
Uygulanabilir: Asansör parçaları İş türü: Üretici
Garanti Zamanı: 12 ay Ambalaj: kartonda paketlenmiş
Modeli: Ani Güvenlik Donanımı Tip: Ani Güvenlik Donanımı



Elevator Safety Parts Elevator Instantaneous Safety Gear ≤7000Kg P+Q



Parameter Table



Rated Speed

(m/s)

Acting Speed of Governor

(m/s)

System Quality

Permitted P+Q

(kg)

Rail Width

(mm)

Certification Rail Status

Overall Dimensions

(Fixed Installation) mm

Input Power

≤0.63 ≤0.8 ≤7000 15.88/16 GB Dry/Lubricated 200x300x149





Elevator Safety Parts Elevator Instantaneous Safety Gear ≤7000Kg P+Q 0





Elevator Safety Parts Elevator Instantaneous Safety Gear ≤7000Kg P+Q 1



Elevator Safety Parts Elevator Instantaneous Safety Gear ≤7000Kg P+Q 2



Elevator Safety Parts Elevator Instantaneous Safety Gear ≤7000Kg P+Q 3



Elevator Safety Parts Elevator Instantaneous Safety Gear ≤7000Kg P+Q 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
