1000-2500kg Rated Load Cable Clamp Lift Spare Parts 0.25-2.5m/S Speed

Büyük resim : 1000-2500kg Rated Load Cable Clamp Lift Spare Parts 0.25-2.5m/S Speed

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	SUNNY
Sertifika:	CE,ISO9001
Model numarası:	SN-ARB-C

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 takım
Fiyat:	$50
Ambalaj bilgileri:	Ahşap Kutu
Teslim süresi:	7 ~ 15 gün
Ödeme koşulları:	L/C, T/T, Western Union
Yetenek temini:	10000 Adet/Ay

İletişim

Detaylı ürün tanımı

İsim:	Kablo kelepçesi	Nominal Hız:	0,25-2,5 m/sn
Uygulanabilir:	Asansör parçaları	İş türü:	üretici
Garanti Zamanı:	12 ay	Modeli:	Kablo kelepçesi
Tip:	Kablo kelepçesi	Sertifika:	GB/CE
Nominal Yük:	1000-2500kg

1000-2500kg Rated Load Cable Clamp Lift Spare Parts 0.25-2.5m/S Speed

Parameter Table

	ARB-A		ARB-B1		ARB-C
Traction ratio	1:1	2:1	1:1	2:1	1:1	2:1
Rated speed(m/s)	0.25~5.0	0.25~2.5	0.25~3.0	0.25~1.5	0.25~2.5	0.25~1.25
System mass(excluding rated mass)(kg)	675~4300	1350~8600	2100~7100	4200~14200	2100~11000	4200~22000
Rated Mass(kg)	320-1000	640~2000	1000~1750	2000~3500	1000-2500	2000~5000
Traction rope diameter d(mm)	Φ8-Φ16		Φ8-Φ16		Φ8-Φ16
Traction rope outermost distance(mm)	≤172		≤172		≤192
UCMP speed(m/s)	≤1.5		≤1.2		≤1.2
ACOP speed(m/s)	≤6.93	≤3.23	≤4.22	≤2.05	≤3.32	≤1.66
The maximum tilt angle(clockwise)	45°		45°		45°
Electric interface	Rated voltage 24V, rated current ≥3.5A/5A, standby power ≥6W Rated voltage24V,Rated current≥3.5A/A,Maintain stand-by power≥6W

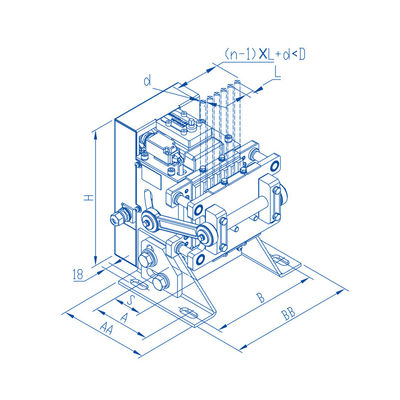

Interface table

Model Type	Interface Serial number No.	Installation interface Arrangement(mm)							Mounting hole radius	External dimension (LxWxH)(mm)
Model Type	Interface Serial number No.	A	AA	B	BB	D	H	S	Mounting hole radius	External dimension (LxWxH)(mm)
ARB-A ARB-B1	1	130	200	201	241	117	328.5	88~89.5	R9	283x241x328.5
	2	130	200	240	280	157	328.5	88~89.5	R9	283x280x328.5
	3	130	200	255	295	172	328.5	88~89.5	R9	283x295x328.5
ARB-C	4	130	200	283	323	192	328.5	88~89.5	R9	283x323x328.5

1000-2500kg Rated Load Cable Clamp Lift Spare Parts 0.25-2.5m/S Speed 0

1000-2500kg Rated Load Cable Clamp Lift Spare Parts 0.25-2.5m/S Speed 1

1000-2500kg Rated Load Cable Clamp Lift Spare Parts 0.25-2.5m/S Speed 2

1000-2500kg Rated Load Cable Clamp Lift Spare Parts 0.25-2.5m/S Speed 3

1000-2500kg Rated Load Cable Clamp Lift Spare Parts 0.25-2.5m/S Speed 4

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
